Light desk

For a very long time, probably since I first saw one around age 12, I’ve wanted a light box for tracing. Since I was already making a drawer to replace one that had rotted out in our kitchen, I figured it would be a good time to try my luck at making a light box since it’s pretty much the same general skills.

I bought poplar “craft wood” from Lowes, which is nice to work with and some luan plywood, which I haven’t worked with since my theater tech days when it was what we made in to practically everything. I designed it to have a desk top that is approximately 14×14″, which should allow for most sizes I’d want to work with, and should be big enough for water colors.

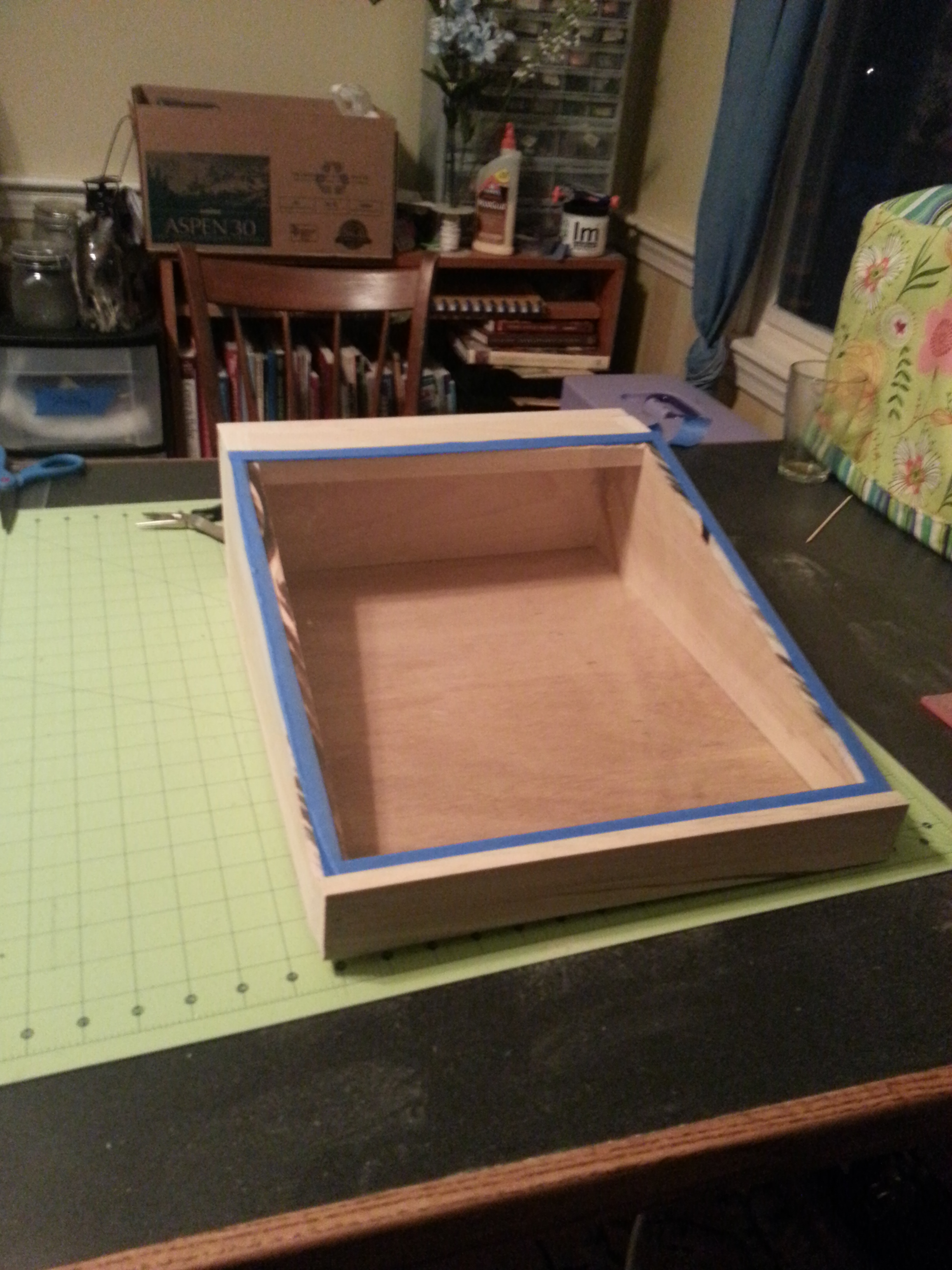

The angle of the writing surface is around 20 degrees, which is a bit shallow for calligraphy but is pretty comfortable to work on in general, I figure I can raise it up a bit using something to prop it up if I find need. The plexiglass top comes off entirely, which will make it easy to set things up using painter’s tape to adhere securely. (The painter’s tape is also along the edges of the plexiglass to make it safe)

2013-11-17 16.41.07

The bottom is channeled in like a drawer. The 1/4 inch luan turned out to be about two blades width of the table saw, which was convenient.

2013-11-17 16.41.30

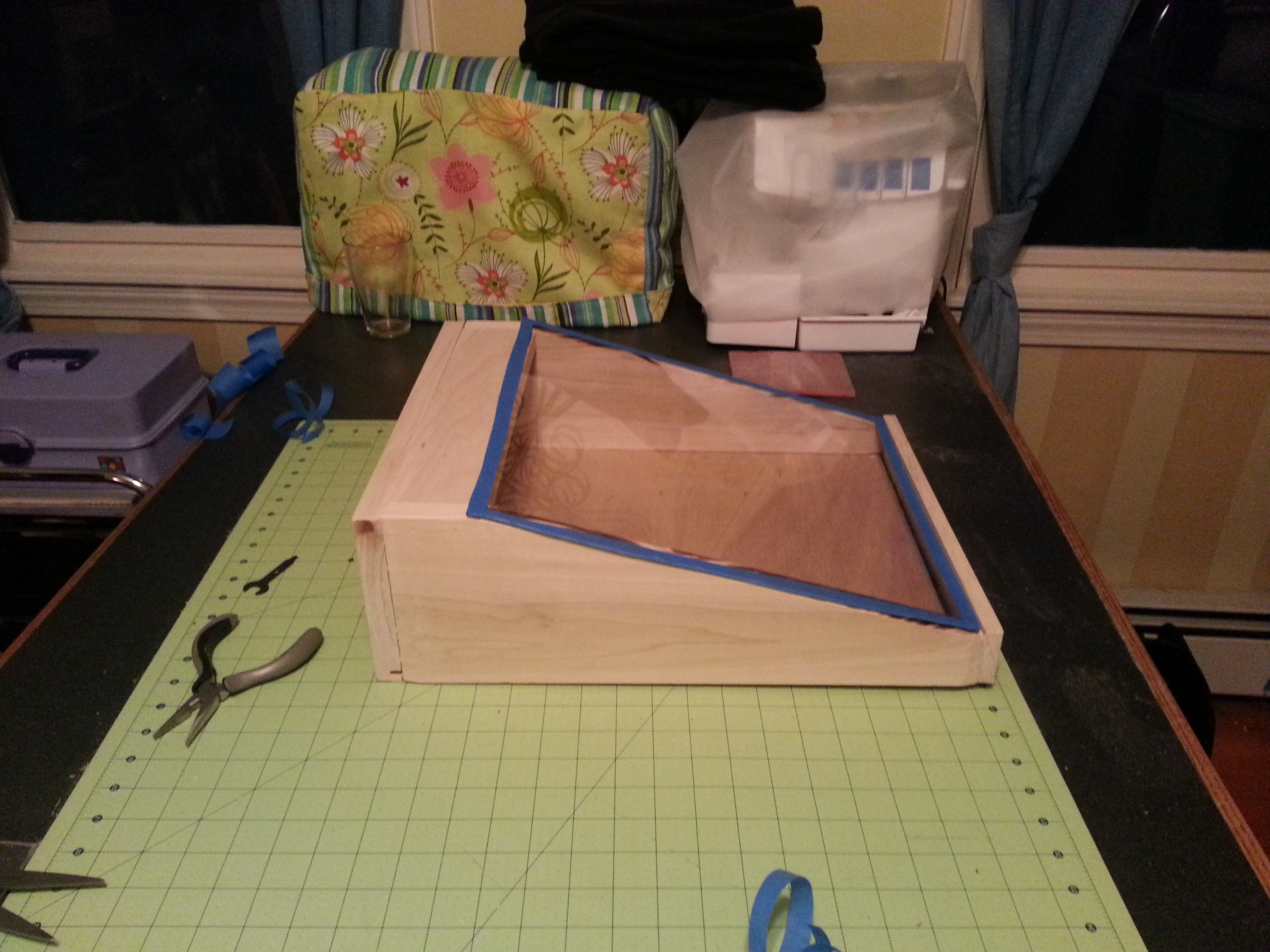

I plan to eventually carve some grooves into the top flat bit for resting brushes and pens. Also perhaps an opening for water or ink containers. I also need to drill a hole in the back to put in the the light. And finish it with wax to preserve the wood.

2013-11-17 16.41.17
